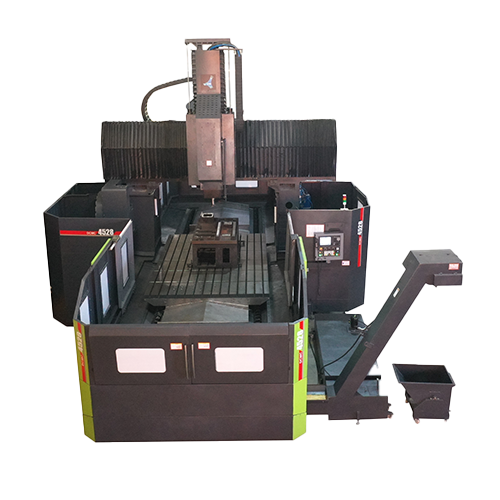

DCMC 4528

	Description	Unit	4528
Table	Table Size	mm	3750 X 2300
	T-Slot Dimention	mm	14 x 22 x 160
	Distance from Floor to Table	mm	960
	Max.Load on Table	kgf	14000
	Disance Between Two Columns	mm	2875
Capacity	X-Axis Travel	mm	4500
	Y-Axis Travel	mm	2800
	Z-Axis Travel	mm	800
	Dis.From Spindle Face to Table Top(Min-Max)	mm	200
Feed	Rapid Traverse(x,y & z Axis)	m/min	20/20/15
	Cutting Feed	m/min	10
Main Spindle	Spindle Nose		BT-50
	Spindle Motor Power-Siemens	kw	18.5/22
	Spindle Motor Power-Mitsubishi	kw	18.5/22
	Spindle Speed Range	rpm	0-6000
ATC	Number of Tool		20
	Max.Tool Dia.Pockets	mm	125/200
	Max.Tool Weight	kg	20
	Max.Tool Length	mm	400
Accuracy	Positioning Uncertainty(P)	mm	0.02
	Repeatability(ps medium)	mm	0.015
	Weight(Approx.)	kg	40500

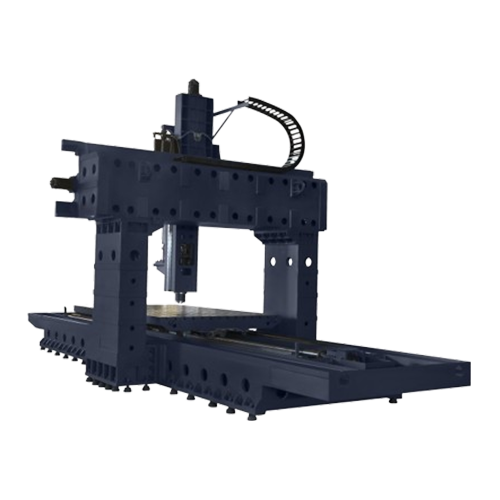

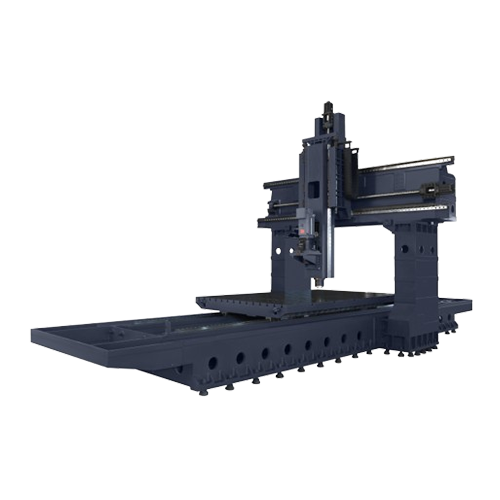

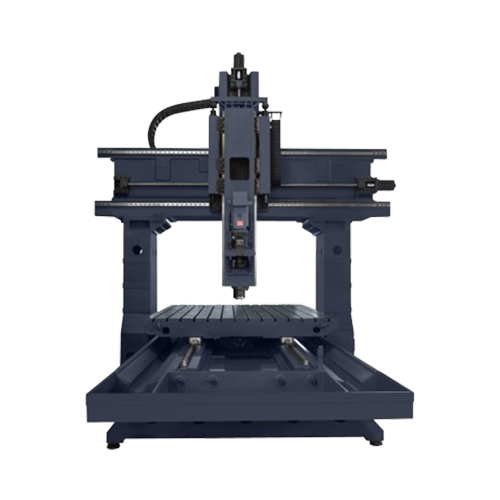

Bed Construction Extra Wide Design

50X10 Size Ball Screw with C3 Grade , Long Nut and Deep Groove with Zero Backlash

Lower Centre Of Gravity

High Precision Grade 65 Size Roller Type LM in X & Y and Z with 4 LM 45 Size Roller Type Guideways with Medium Preloaded Extra Long Blocks

Digital Servo Spindle Motor

Taiwan Make High Speed Rigid Spindle with P4 Class Angular Contact Ball Bearings

Smart Tool Management System

20 Tools ATC with lowest tool to tool time

Dry Air Cutting Nozzle with High Pressure and Flow

Advance Tool Call System(ATS)

All Telescopic Cover in Stainless Steel Grade ( Corrosion Free )

Machine Guard With RAL 7037 & RAL 7021 Powder Coated

Electric Pannel with Air Conditioner

High Pressure Coolant Unit

Auto Lubrication Unit and Coolant Unit

Pull Stud , T-Nut

Flush Coolant

Coolant Tank

Ring Coolant, Screw Conveyor

Allen Key Set , Spanner Set

Chip Conveyor
Voltage Stabilizer
Through Coolant Spindle
Direct Coupled Spindle
Motorized Spindle
High Pressure Coolant Pump
Oil Skimmer
Linear Scale
Spindle Oil Chiller
Probing System 4th Axis Complete(Roatry Table With Motor Drive + Hydra pneumatic Cylinders + Cables + Interfacing )
4+1=5 Axis Complete (Roatry Tilting Table With Motor Drive + Hydra Pneumatic Cylinders + Cables + Interfacing)
Manual Tail Stock- Manual Chuck – Power Chuck
Clamping Kit
Height Riser
